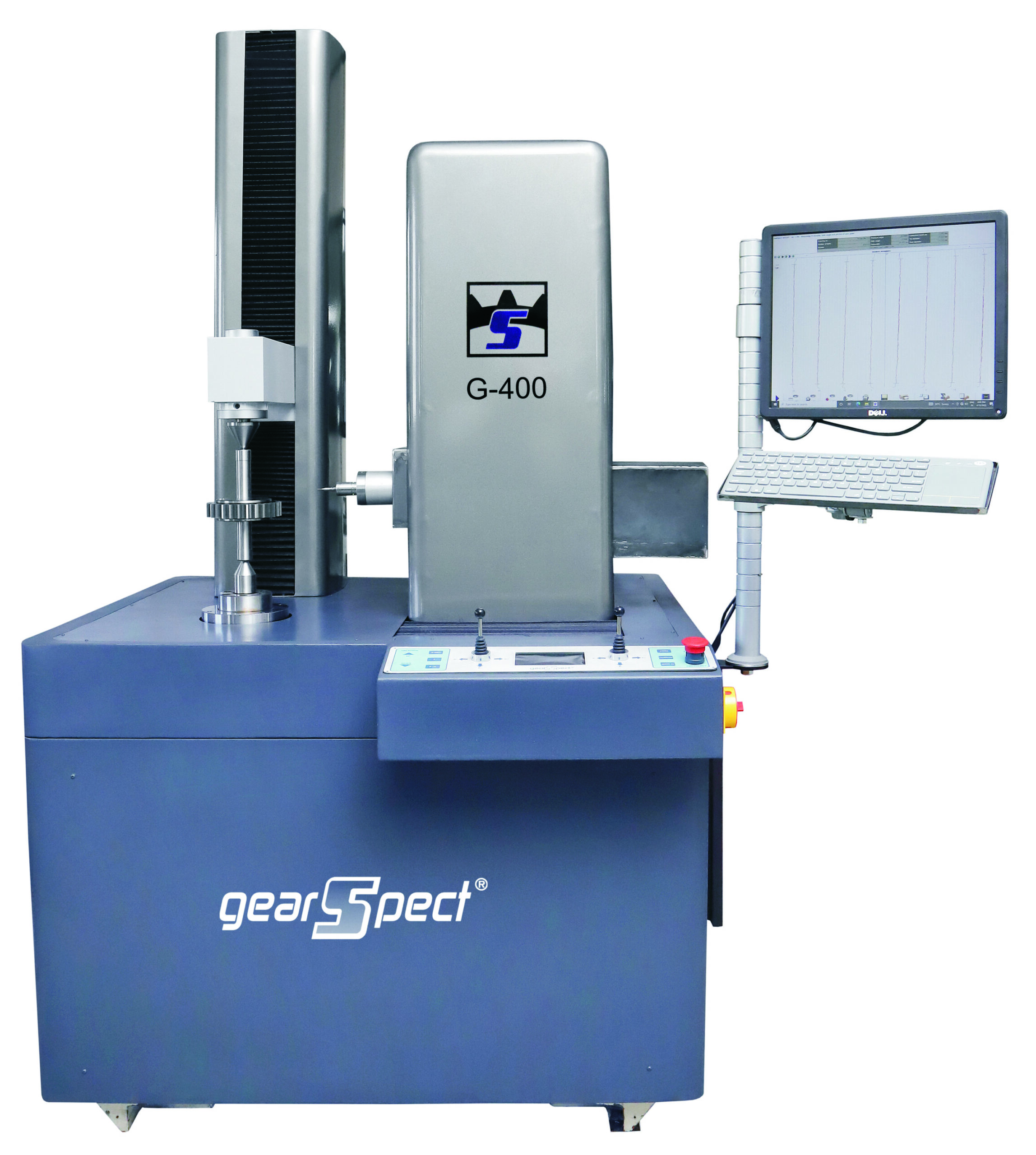

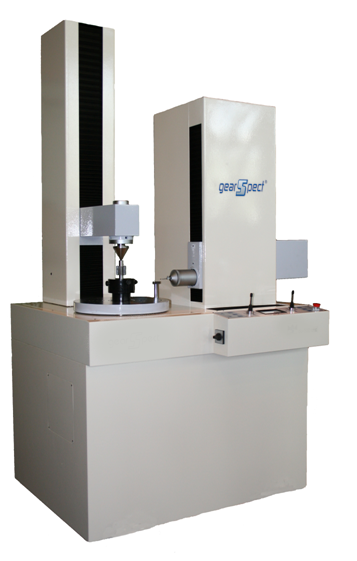

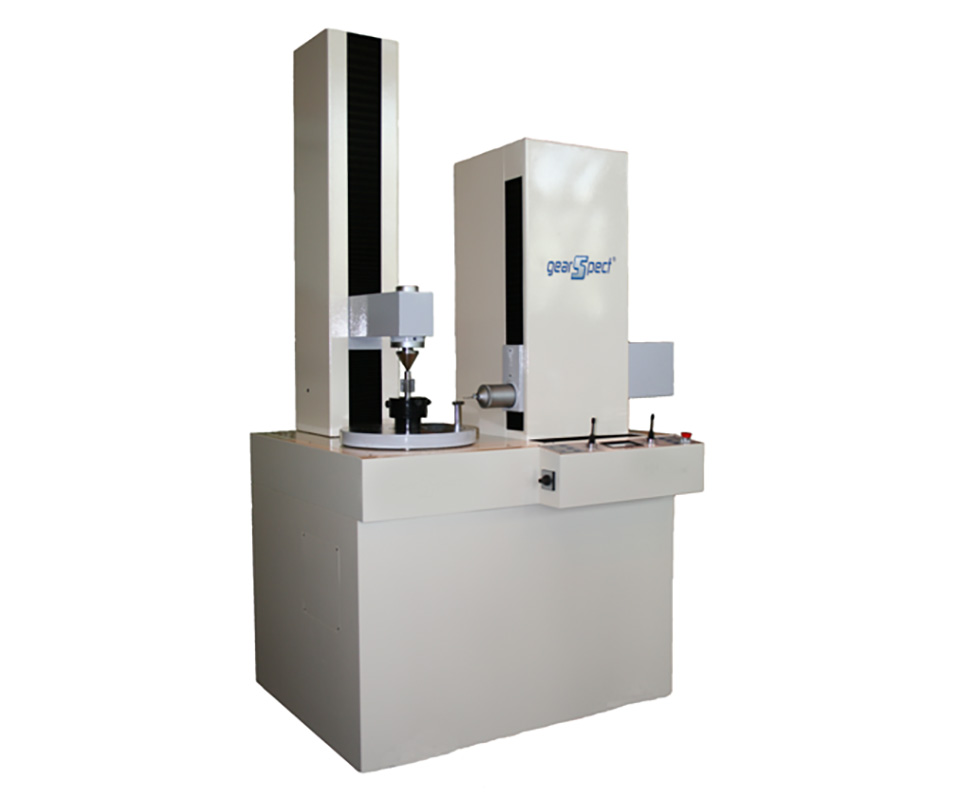

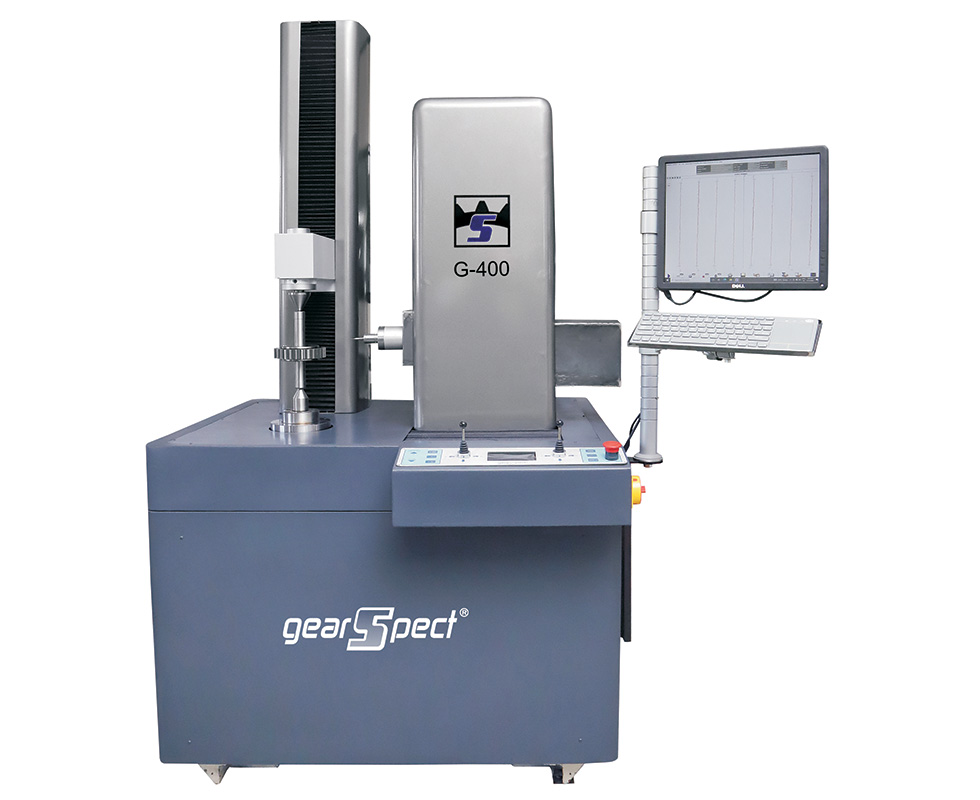

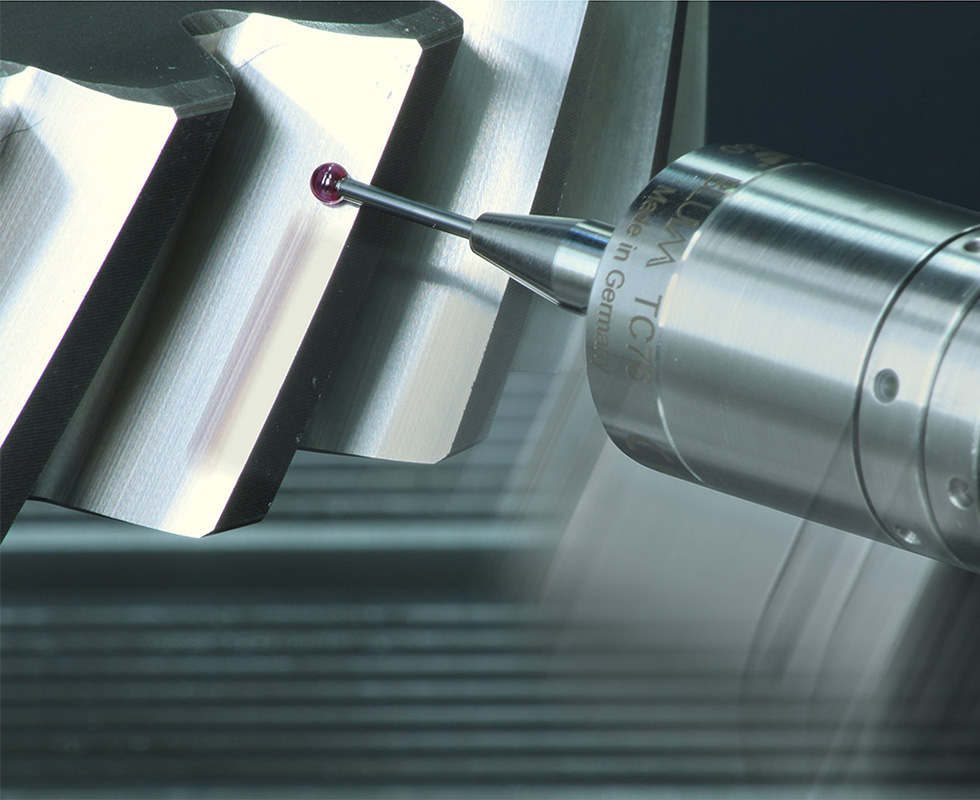

G – 260/400

Measuring center for complete testing of geometric deviation of internal, external spur and helical gears.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Category	Gear Geometric Tester, Internal Gear Tester, External Gear Tester, Spur Gear Tester, Helical Gear Tester, Gear Profile Tester, Gear Helix Tester, Gear Pitch Tester, Spline Gear Tester, Over Ball Tester, Over Pin Tester, Gear MdK Tester, Gear DK Tester, Gear Run Out Tester
Max. diameter of the measured wheel	260 / 400 mm
Min. diameter of the pitch circle	10 mm
Min./max .module of the measured wheel	0.5 / 15 mm
Maximum tooth helix angle	90°
Maximum gear width	315 mm
Distance between centres	650 mm
