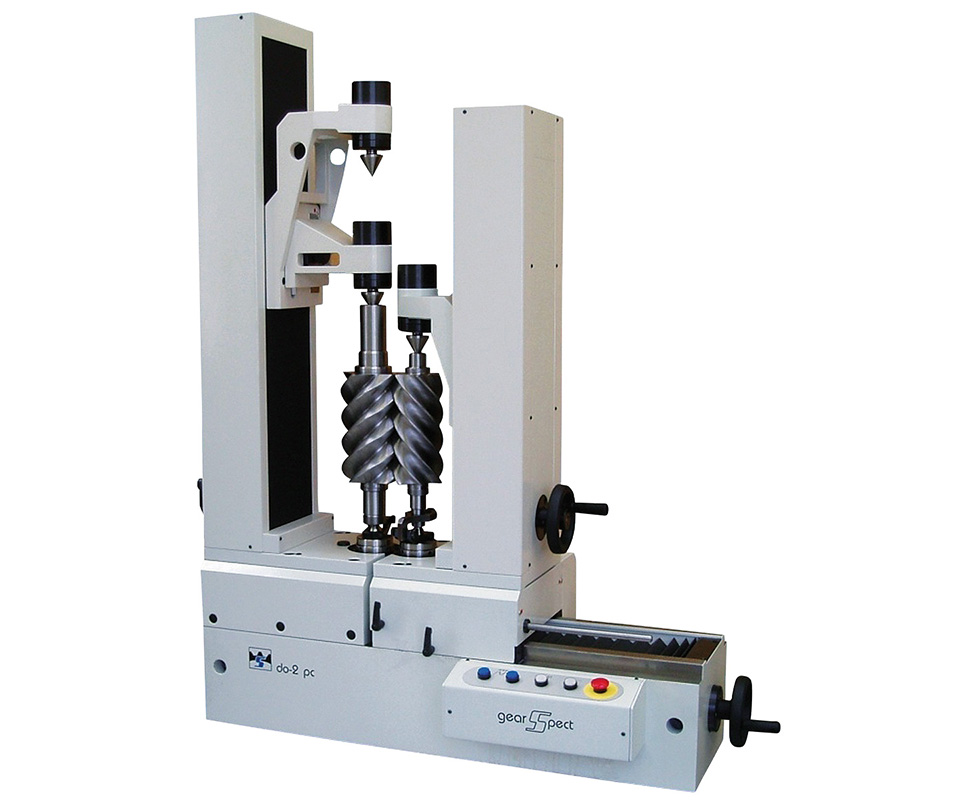

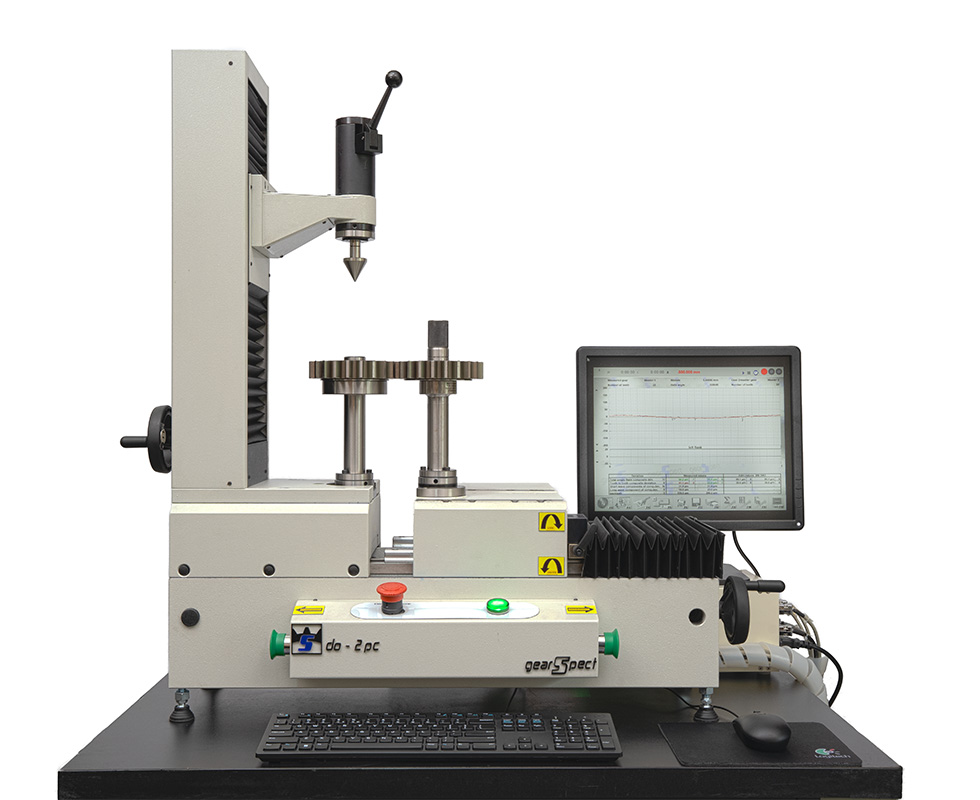

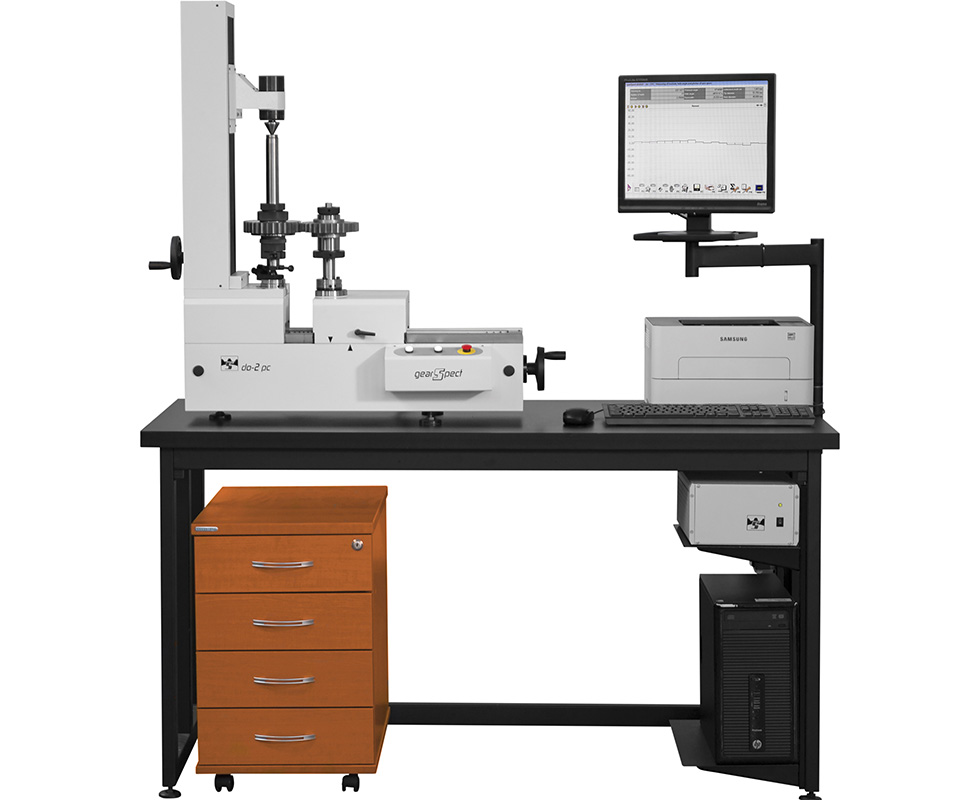

DO 2 PC 180/280/350

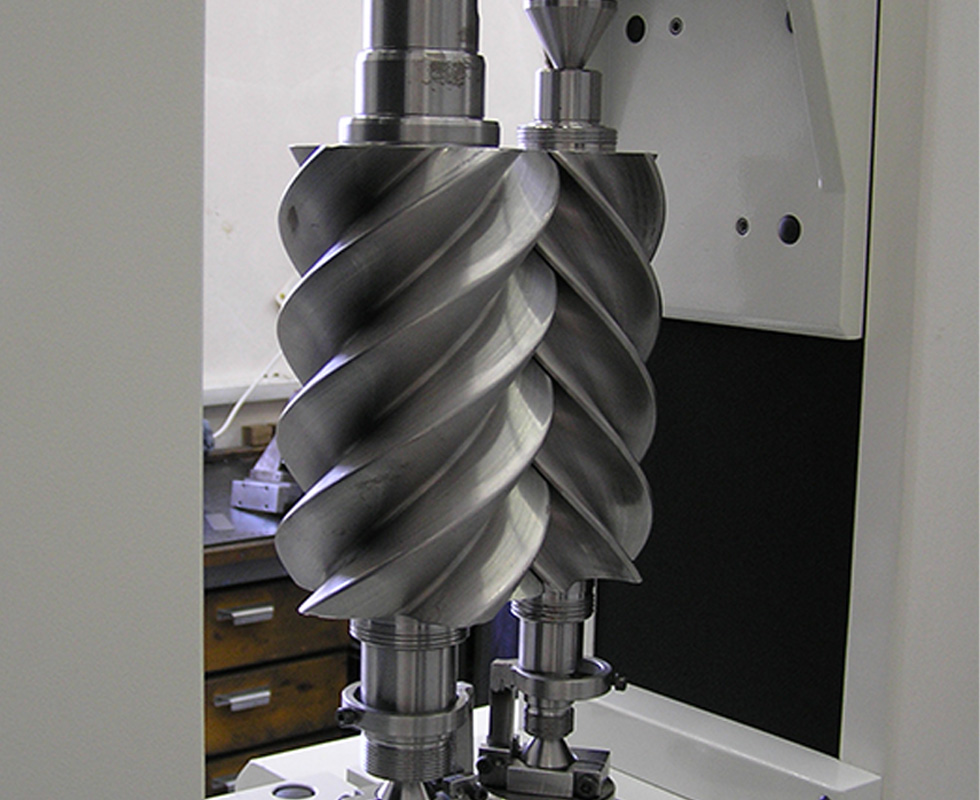

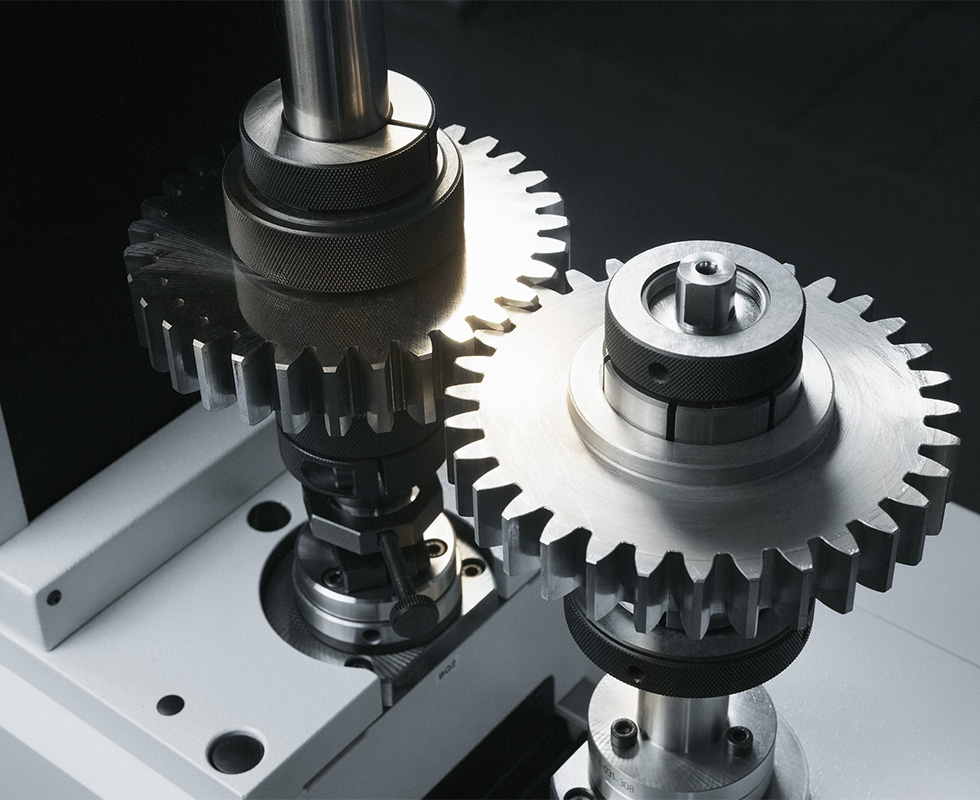

Test of deviations of single flank and Mdk and spur gears with master gears. Scanning and evaluation by PC.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Category	Single Flank Gear Tester, Roll Gear Tester, Shaft Gear Tester, Internal Gear Tester, External Gear Tester, Contact Pattern Tester, Noise Gear Tester
Minimum/maximum diameter of wheel	10 – 320 mm
Clamping between the centres	180 / 280 / 350 mm
Minimum/maximum module	0.5 – 8 mm
Minimum/maximum centre distance	65 – 315 mm
