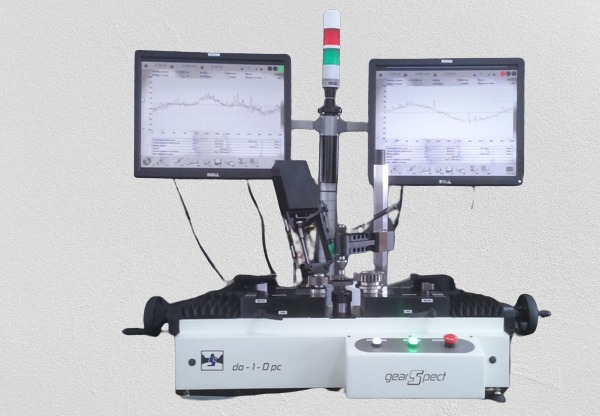

DO 1 D PC

Test of deviations of external spur and helical gears with dual station facility to acctive highest productivity.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Category	Double Flank Gear Tester, Roll Gear Tester, Internal Gear Tester, Spline Gear Tester, Over Ball Tester, Over Pin Tester, Gear MdK Tester, Gear DK Tester, Gear Run Out Tester
Minimum/maximum diameter of wheel	2 – 120 mm
Clamping between the centres	100 mm
Minimum/maximum module	0.5 – 8 mm
Minimum/maximum centre distance	50 – 140 mm
