DO 2 W PC 180/280/500/1000

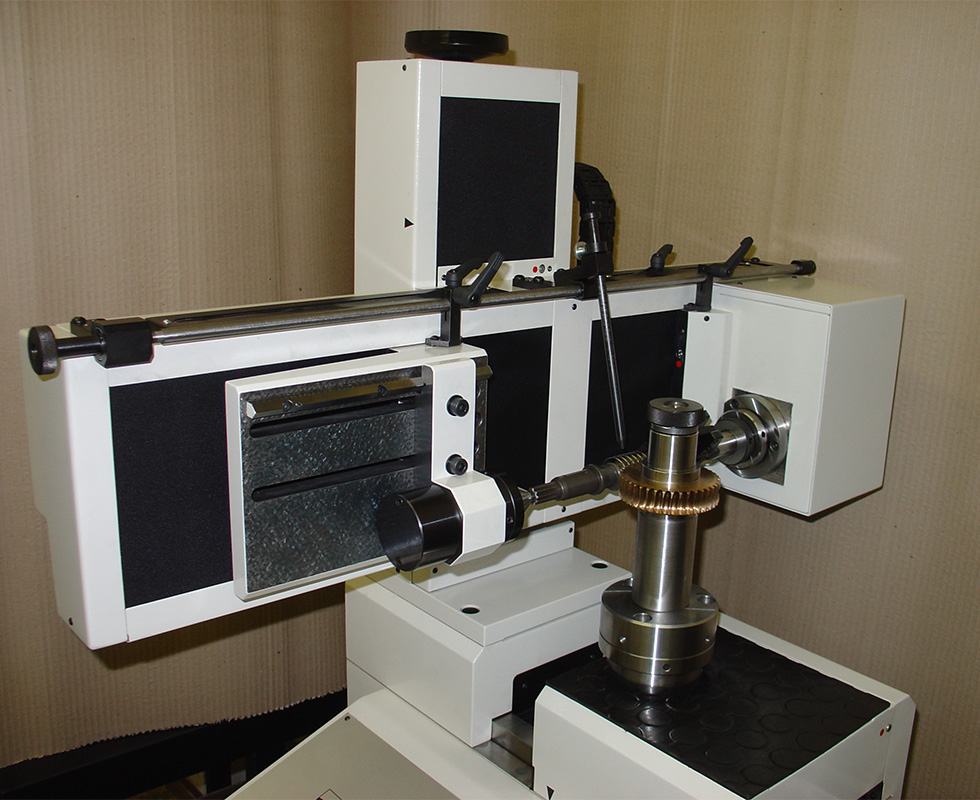

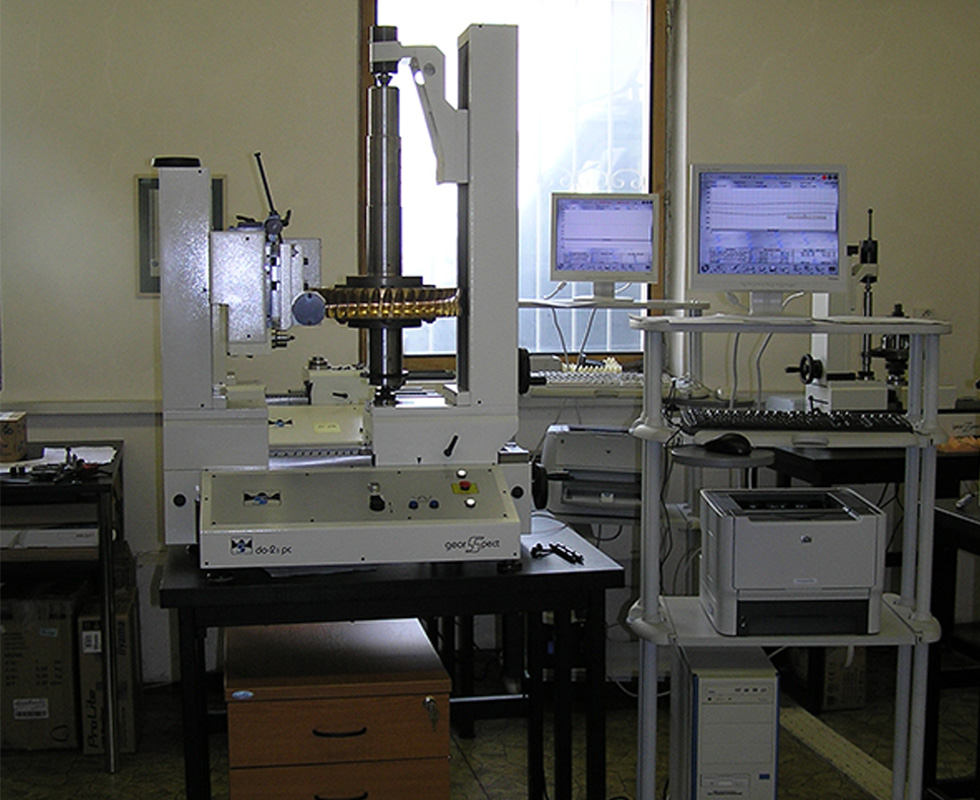

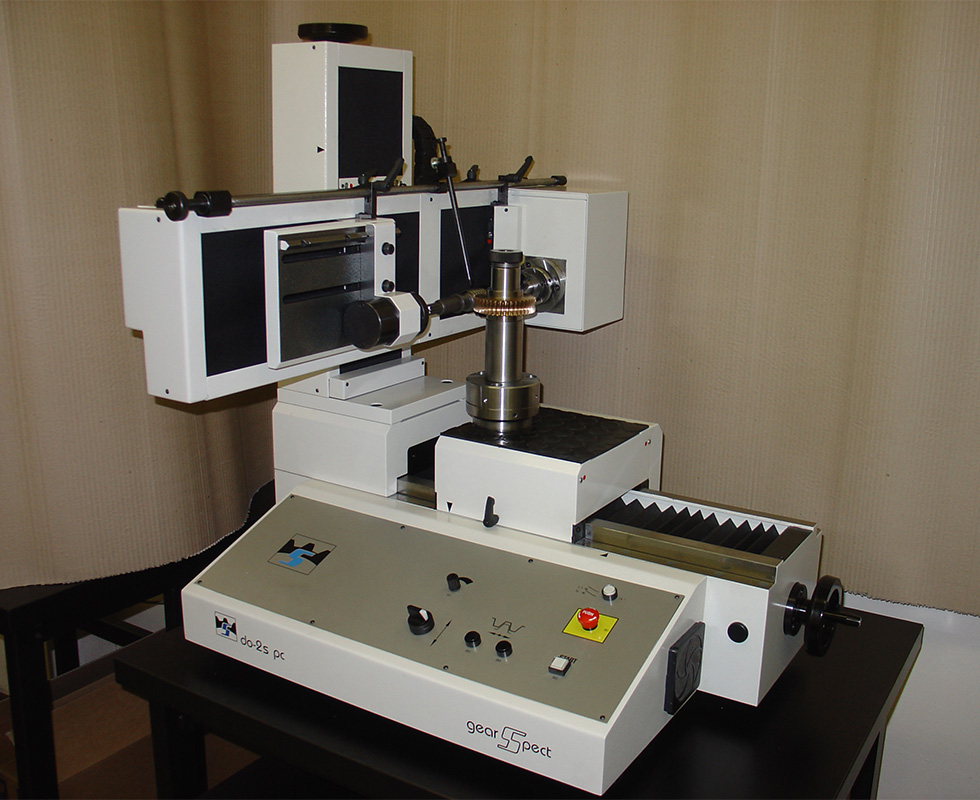

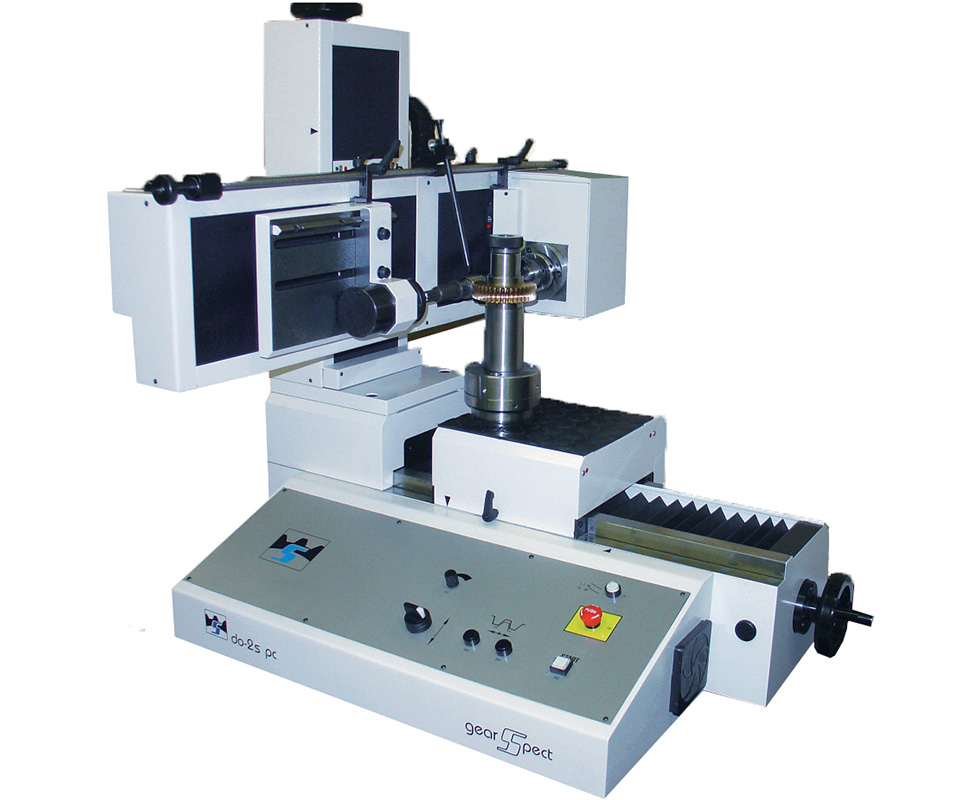

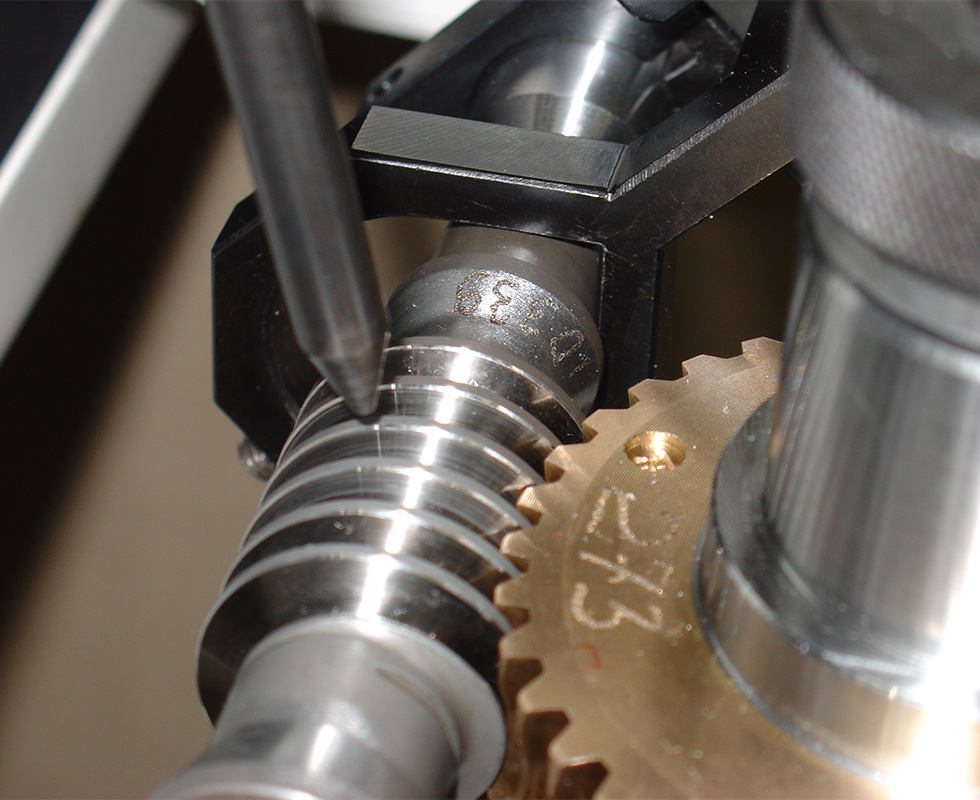

Measuring instrument for computerized testing of worm gears with master by single flank evaluation for small and medium-sized parts.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Category	Single Flank Roll Worm Wheel Tester, Single Flank Roll Worm Tester, Contact Pattern Tester
Min./max. axis distance	50 / 250 mm
Min./max. diameter of worm/worm wheel	15 – 150 mm / 55 – 280 mm
Min./max. length of worm between centre	50 / 250 mm
Maximum weigth of worm/worm wheel	10 – 100 kg
Axis angle	90º
