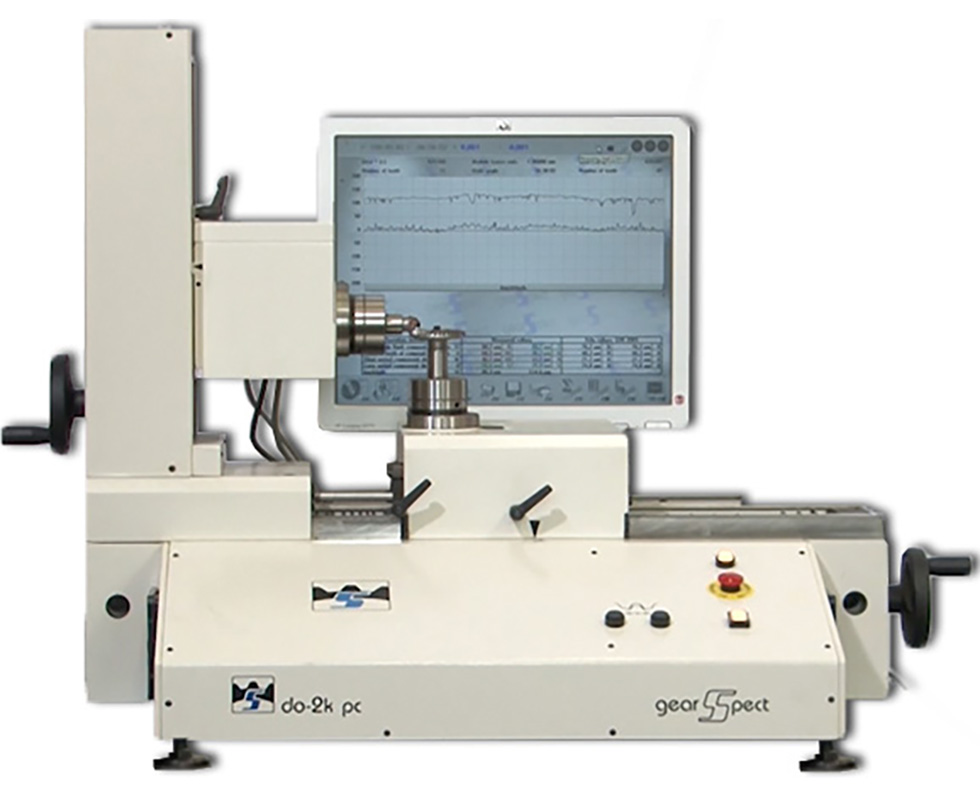

DO 2 K PC

Measuring instrument for testing of bevel gearing by single flank rolling method. Angle of crossed axes is 90°. Scanning and evaluation by PC.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Category	Single Flank Bevel Gear Roll Tester, Ring Gear Tester, Pinion Gear Tester, Contact Pattern Tester, Noise Gear Tester
Minimum diameter of the measured pinion	10 mm
Maximum diameter of the measured wheel	140 mm
Maximum assembly distance	100 mm
Angle of conical gearing axes	90°
