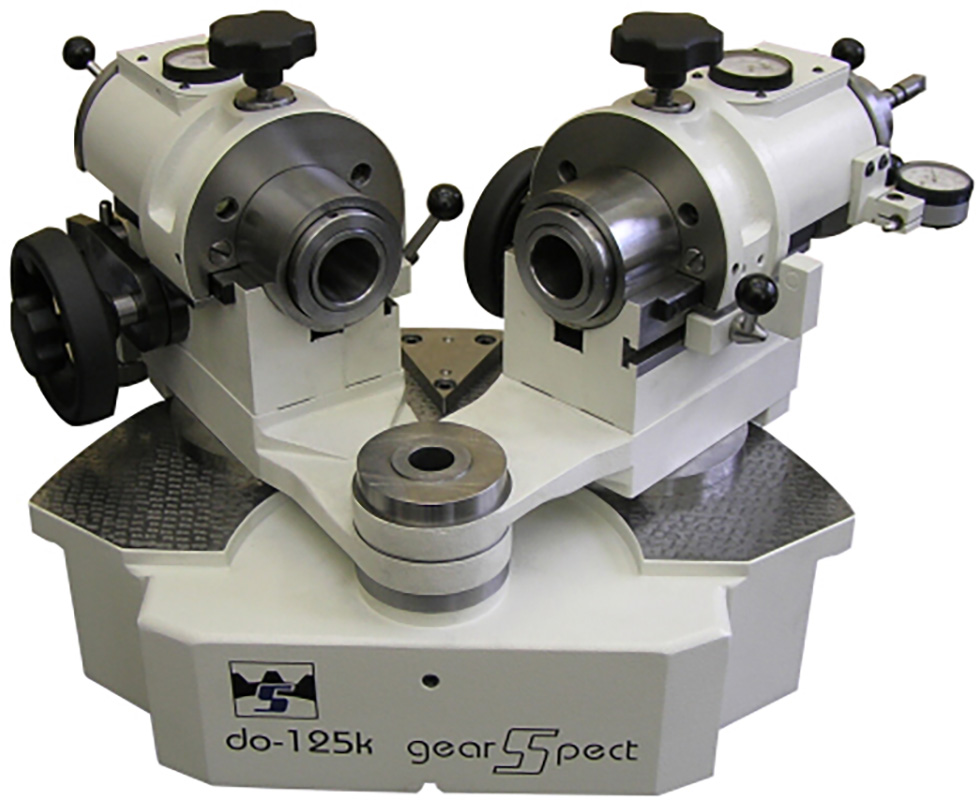

DO 125 K

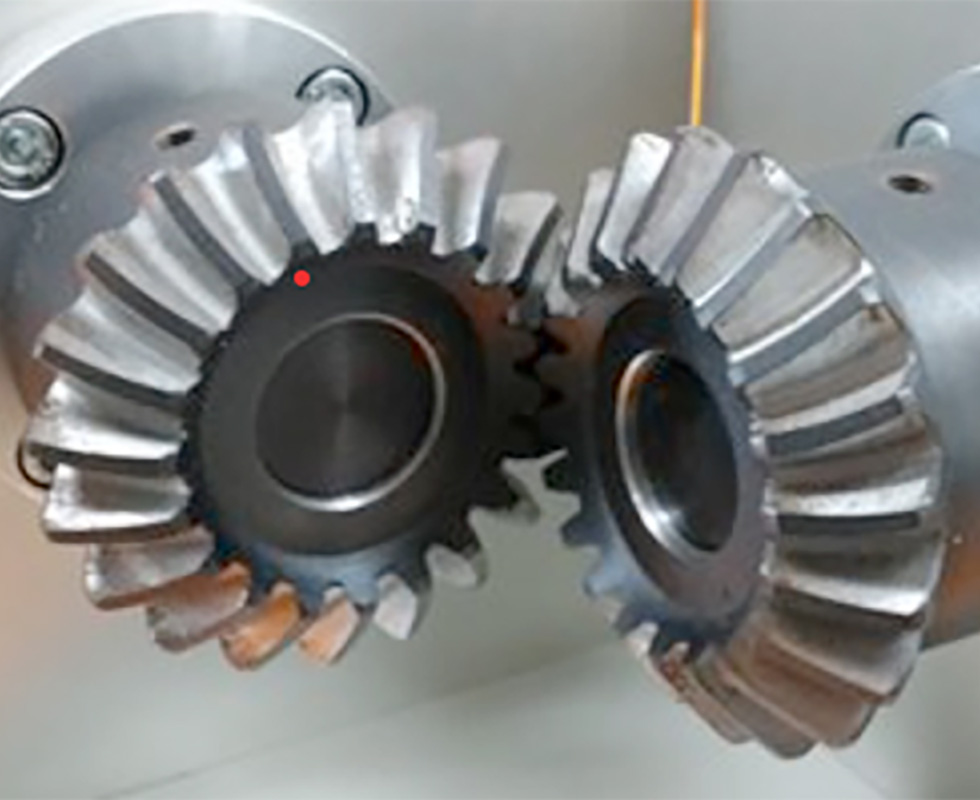

Enables conventional contact pattern test of bevel gears. Reading and evaluation using dial gauges.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Minimum diameter of pinion	10 mm
Maximum diameter of gear	125 mm
Minimum/maximum assembly distance	35 – 90 mm
Angle between axes	50° – 140°
