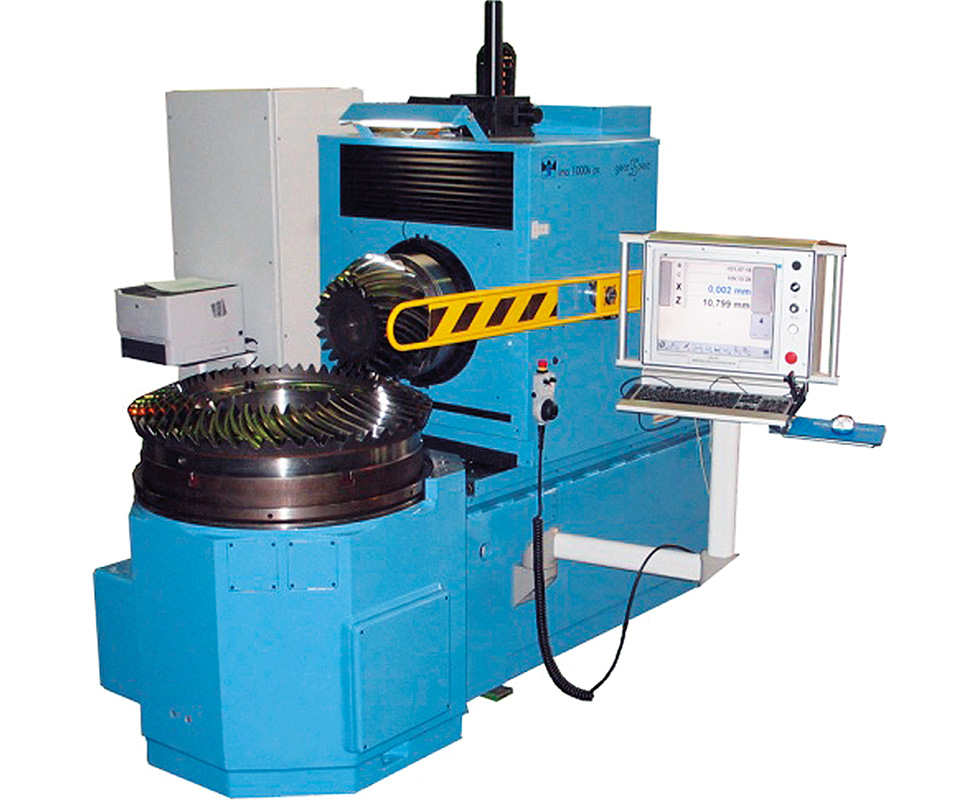

DO 1000 K CNC

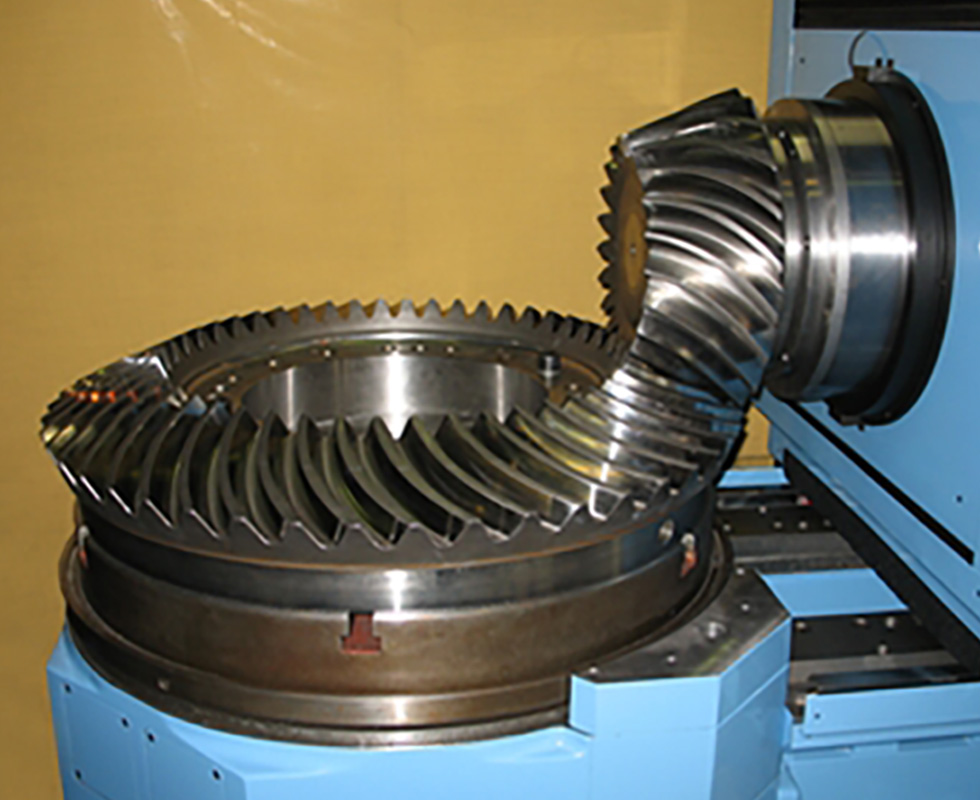

Measuring instrument for testing of large bevel gear by single flankrolling method. Scanning and evaluation by PC.

Measuring Instrument - Custom Solution:

Measurable Gears - Custom Solution:

Category	Single Flank Bevel Gear Roll Tester, Ring Gear Tester, Pinion Gear Tester, Contact Pattern Tester, Noise Gear Tester
Minimum diameter of pinion	650 mm
Maximum diameter of bevel	1000 mm
Min./maxi. axial distance – axis X / axis Y	250 – 600 mm / 200 – 400 mm
Angle of conical gearing axe	90°
